🔋 The Complete Guide to Tablet Battery Safety & Runtime Optimization

---

📌 Introduction: The Hidden Core of Competitive Advantage

A tablet’s battery life and safety features often remain invisible to users, embedded deep within technical details. The selection of cell materials, precision circuit design, fast charging protocol optimization, and rigorous certification standards collectively constitute its “invisible” strength. These core technologies—rarely highlighted on specification sheets—determine not only the user experience but also safeguard every charging cycle and moment of operation. 🛡️

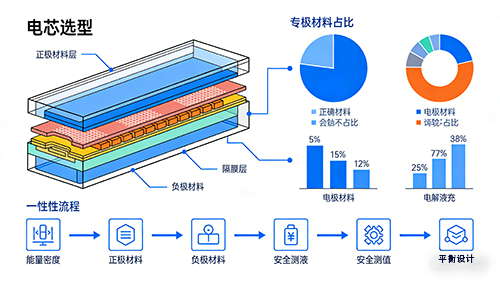

⚡ 1. Cell Selection: Balancing Energy Density and Safety Margins

As the core of any battery system, cell selection logic revolves around achieving dynamic balance between runtime requirements and safety redundancy. In terms of material chemistry, the industry focuses on increasing energy density while enhancing thermal stability. By optimizing electrode material ratios and electrolyte compositions, we achieve over 30% higher volumetric capacity while raising thermal runaway trigger temperatures above 150°C—fundamentally reducing safety risks at the source. 🔥

Beyond core parameters like cycle life (≥1000 cycles with ≥80% capacity retention) and discharge rates, we prioritize cell consistency. Through rigorous screening standards, we maintain voltage differentials between cells within ±5mV, preventing localized overload conditions when cells are used in series. Given the portable nature of tablets, lightweight construction and impact resistance are critical considerations—we integrate buffer layers and puncture-resistant structures into cell packaging to enhance mechanical protection. 📦

Emerging cell technologies are also entering production: solid-state electrolytes enable energy densities exceeding 400Wh/L while eliminating liquid electrolyte leakage risks. Low self-discharge designs reduce standby power consumption to microamp levels, balancing extended runtime with long-term storage stability. 🔋

🧠 2. Power Management IC: Intelligent Coordination of Safety and Efficiency

The Power Management IC (PMIC) serves as the battery system’s central nervous system, implementing multi-layered safety protection and dynamic power regulation. Its core design philosophy—anticipate risks, allocate precisely, conserve on demand—achieves millisecond-level fault response through integrated voltage/current/temperature sensing units, high-speed comparators, and intelligent driver modules. ⚙️

For safety protection, our circuits employ a five-layer coordinated protection mechanism: Over-Voltage Protection (OVP) monitors fluctuations via precision resistor dividers with ±2% threshold accuracy; Over-Current Protection (OCP) uses dual shunt resistor and Hall sensor detection; Short-Circuit Protection (SCP) activates “hiccup mode” to rapidly disconnect circuits, preventing sustained overheating; Over-Temperature Protection (OTP) leverages both on-chip sensors and battery NTC thermistors, automatically reducing power above 60°C; Over-Charge Protection strictly follows CC-CV charging curves to prevent cell swelling. 🛡️

On the efficiency front, our multi-domain power architecture partitions the processor, display, and peripherals into independent power supply units. Using Dynamic Voltage Scaling (DVS) and Dynamic Frequency Scaling (DFS), we adjust supply parameters in real-time based on workload. In standby, non-core modules are automatically powered down, retaining only micro-current wake channels—achieving whole-device standby power below 10mW. Under heavy loads, multi-phase DC-DC converters maintain >95% conversion efficiency, minimizing energy loss. ⚡

⚡ 3. Fast Charging: The Dynamic Balance Between Speed and Longevity

Fast charging technology isn’t simply about boosting power—it’s about achieving dynamic equilibrium between rapid replenishment and battery life preservation. Our approach revolves around three dimensions: precise voltage/current control, real-time thermal management, and secure protocol coordination—never sacrificing safety for speed. 🔄

Charging architectures fall into two main categories: high-voltage and low-voltage high-current solutions. The former achieves higher power through increased voltage, while the latter reduces heat through higher current. Charge pump technology pushes voltage conversion efficiency above 97%, minimizing energy loss. Regardless of architecture, we employ multi-stage charging: constant power for rapid initial replenishment, automatically switching to constant voltage mode at 80% charge to reduce current, minimize cell polarization, and extend cycle life. 📈

Safety control is paramount. NTC thermistors monitor battery temperature every 10ms, automatically reducing charge power above 45°C. The Battery Management System (BMS) communicates bidirectionally with the charger via encrypted protocols, only activating fast charging after verifying device compatibility—preventing mismatched protocols from causing overload. Charging cables and connectors feature large-gauge conductors and reinforced insulation to minimize resistive losses and leakage risks during high-current transmission. 🔒

Additionally, pulse charging technology cycles between brief high-current pulses and rest periods, reducing lithium deposition and mitigating capacity fade—delivering over 15% improvement in capacity retention after repeated fast charging cycles. ⚡

✅ 4. Safety Certifications: Comprehensive Quality Validation

Safety certifications represent the battery system’s ultimate line of defense. Their core value lies in subjecting products to standardized, rigorous testing that validates reliability under extreme conditions. While global certification frameworks vary, they all revolve around three pillars: electrical safety, mechanical safety, and environmental adaptability. 🌍

Electrical safety testing focuses on overcharge, overcurrent, short circuit, and insulation scenarios. Batteries must withstand 2x rated voltage overcharging without fire or explosion; short-circuit protection must trigger within ≤1ms; insulation resistance must exceed 100MΩ to prevent leakage. Mechanical safety testing covers crush, impact, drop, and nail penetration—simulating accidental damage to verify no casing rupture or electrolyte leakage. ⚙️

Environmental adaptability testing spans extreme temperature cycles (-40°C to 75°C), humidity variation, and thermal abuse. Thermal runaway prevention is critical: individual cells must trigger warnings within 30 seconds of failure, with no propagation to adjacent cells and gas emissions meeting safety standards. Cell balancing tests ensure series voltage differentials ≤10mV, preventing localized overcharge or discharge. Cycle life testing requires ≤20% capacity loss after 2000 charge-discharge cycles, ensuring long-term reliability. 🔬

These certifications aren’t isolated checkpoints—they permeate product design, manufacturing, and delivery. Initial factory audits and post-certification follow-up inspections ensure production units match tested samples, systematically eliminating safety risks. 📋

🎯 Conclusion: The Power of “Ultimate Synergy”

Tablet battery safety and runtime optimization ultimately represent the ultimate synergy of four core technology domains: cell selection, circuit design, fast charging, and certification standards. No single technology dominates—success lies in the precise alignment of every component. Cell selection lays the foundation; circuit design enables intelligent control; fast charging balances speed with longevity; certifications establish safety boundaries. These “invisible” technical details collectively form the bedrock of reliable device operation—the true strength behind exceptional user experience. ⭐
