๐ฑ GZT-G16 10.1″ 2K Tablet
๐ฑ Unisoc T616 octa-core | 6GB RAM | 128GB storage | Android 13 | 10.1″ 1920×1200 IPS display | 4G LTE | Ideal for business, education, and entertainment
๐ Product Overview
The GZT-G16 is a premium 10.1-inch tablet powered by the Unisoc T616 octa-core processor (2x Cortex-A75 2.0GHz + 6x Cortex-A55 1.8GHz) with Mali-G52 GPU. Featuring a stunning 1920×1200 IPS display, 6GB RAM, and 128GB UFS storage, this tablet delivers exceptional performance for multimedia, productivity, and professional applications. With 4G LTE global band support, dual-band WiFi, and a long-lasting 6000mAh battery, it’s perfect for on-the-go connectivity and all-day use. Running Android 13 with GMS certification, the GZT-G16 is fully customizable for OEM/ODM projects across various industries.
๐ ๏ธ Key Features
โPowerful Processor: Unisoc T616 octa-core (2x Cortex-A75 2.0GHz + 6x Cortex-A55 1.8GHz) for smooth multitasking.
โAdvanced GPU: Mali-G52 MC2 for enhanced graphics performance.
โAmple Memory: 6GB RAM + 128GB UFS 2.1/2.2 storage (expandable via TF card).
โStunning Display: 10.1″ IPS, 1920×1200 resolution, vibrant colors and wide viewing angles.
โCamera System: 13MP auto-focus rear camera + 5MP fixed focus front camera.
โ4G LTE Connectivity: Global band support for worldwide connectivity (6-mode).
โLong Battery Life: 6000mAh battery for 7-10 hours of mixed use.
โModern OS: Android 13 with GMS certification, fully customizable for your brand.
โEnhanced Touch: G+G capacitive multi-touch for better durability and responsiveness.
๐ง System Configuration
CPU
Unisoc T616 octa-core (2x Cortex-A75 2.0GHz + 6x Cortex-A55 1.8GHz)
GPU
Mali-G52 MC2
Main Chipset
Unisoc T616 (12nm)
RAM
6GB LPDDR4X (UMCP)
Flash Storage
128GB UFS 2.1/2.2 (expandable via TF card)
Operating System
Android 13 (GMS certified) โ customizable boot logo/OS
Kernel Version
Linux 4.14 (vendor optimized)
Note: Android version and kernel are subject to firmware updates. Contact our engineers for the latest customization options.
๐ฅ Display & Cameras
LCD Panel
10.1″ IPS, 1920×1200, 16.7M colors
Touch
G+G capacitive 10-point multi-touch
Front Camera
5MP fixed focus
Rear Camera
13MP auto-focus
Video Playback
1080p@30fps H.264/MPEG4/H.263/VC1/VP8
Audio
2 x 8ฮฉ/1W speakers (BOX), built-in microphone, 3.5mm headphone jack
โก Battery & Power
Battery Capacity
6000mAh / 3.7V Li-Polymer
Battery Life
7-10 hours mixed use (depending on usage)
Charging
Type-C, 5V/3A fast charging
Charger
Input: AC100-240V, Output: DC 5V/3A
๐ก Connectivity & Interfaces
4G LTE
6-mode global bands: GSM (B2/B3/B5/B8), WCDMA (B1/B2/B5/B8), TD-SCDMA (B34/B39), LTE-TDD (B38/B39/B40/B41), LTE-FDD (B1/B2/B3/B4/B5/B7/B8/B12/B17/B20/B25/B26/B28/B66), CDMA (BC0)
WiFi
802.11 a/b/g/n/ac (2.4G/5G dual-band)
Bluetooth
Bluetooth 5.0
GNSS
GPS / Galileo / GLONASS / Beidou (B1I & B1C)
SIM / TF
2x Micro-SIM slots + Micro SD card slot
USB Type-C
USB 2.0 OTG + charging (5V/3A)
Audio Jack
3.5mm stereo headphone jack
Keyboard

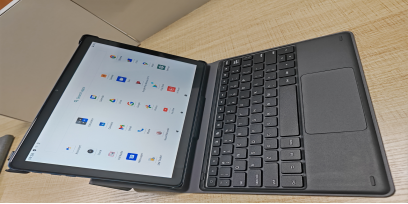

Optional Docking keyboard via USB 2.0 protocol
๐ฎ Sensors & Features
G-sensor
Supported
Light Sensor
Supported
Gyroscope
Optional
Hall Switch
Supported
Vibration Motor
Supported
๐ Physical Specifications
Dimensions
244.5 x 163.6 x 9.6 mm (approximate)
Weight
0.6 KG
Color
Customizable per client requirements
๐ก๏ธ Environmental Requirements
Operating Temperature
0ยฐC to 45ยฐC
Storage Temperature
-20ยฐC to 60ยฐC
Operating Humidity
10% to 90% (non-condensing)
Storage Humidity
5% to 90% (non-condensing)
๐ฑ Pre-installed Applications
Google Apps
Search, Maps, Gmail, Chrome, YouTube, Photos, Play Store
Office
Office suite (WORD, EXCEL, POWERPOINT, PDF, TXT, EPUB)
Communication
E-mail, Weather, Stocks, IM Friendly, QQ Mini, Hi MSN
E-book
PDF/TXT/CHM/DOC/EXCEL/EPUB/RTF/FB2 support
๐ฆ Package Contents
1 x Tablet
GZT-G16 tablet
1 x Adapter
5V/3A charger
1 x USB Cable
USB-A to Type-C cable
1 x Manual
User manual
1 x Warranty Card
Warranty card
โ ๏ธ OEM/ODM Important Notes
Certification: This device is not end-product certified. Whole-device testing (FCC/CE/ROHS) is customer’s responsibility. We provide full technical support for certification.
USB & Peripheral Power:
- Type-C port supports OTG with 5V/500mA output.
- High-power USB devices may require external power.
- 5V/3A charger included for fast charging.
ESD & Handling: This device contains ESD-sensitive components. Use proper anti-static procedures during handling and integration.
Battery Safety: Use only the provided charger. Do not expose to high temperatures or attempt to disassemble the battery.
Customization Services:
- Boot logo, OS optimization, and driver customization available.
- Google GMS pre-certification and private labeling.
- Flexible MOQ โ from 10 units to mass production.
- Custom color options available.
Engineer-to-Engineer Support:
- Direct access to R&D team during prototyping and production.
- 4-6 weeks for first article samples from spec sign-off.
- Ongoing firmware updates and technical support throughout product lifecycle.
๐ Mechanical Dimensions
Unit: mm

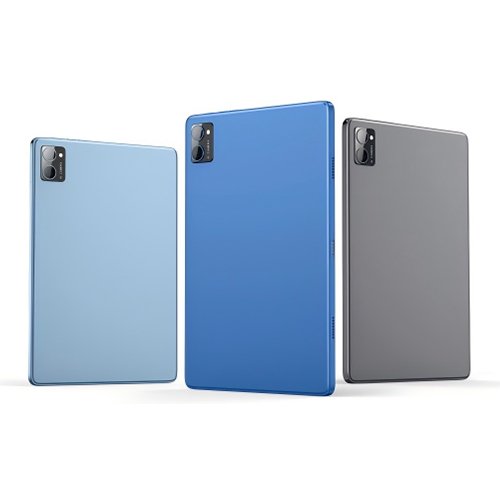

๐ผ Product Images
๐ญ Guangzhou GZTablet Technology Co., Ltd. โ Your OEM/ODM partner since 2014. From prototype to volume, we deliver your brand.
