GZ Tablet

Custom Tablet ODM Experts!

πŸ“± GZT-MTK6769 10.95" 2K Tablet | 6GB RAM | 128GB Storage | Android 14 | 4G LTE | MTK6769
πŸ“± GZT-MTK6769 10.95" 2K Tablet | 6GB RAM | 128GB Storage | Android 14 | 4G LTE | MTK6769 - Image 2
πŸ“± GZT-MTK6769 10.95" 2K Tablet | 6GB RAM | 128GB Storage | Android 14 | 4G LTE | MTK6769 - Image 3

πŸ“± GZT-MTK6769 10.95″ 2K Tablet | 6GB RAM | 128GB Storage | Android 14 | 4G LTE | MTK6769

πŸ“± MTK6769 octa-core (2xA75 2.0GHz + 6xA55 2.0GHz) | Mali-G57 GPU | 6GB RAM | 128GB storage | Android 14 | 10.95″ 1200×1920 Incell display | 13MP+5MP cameras | 4G LTE global bands | WiFi ac | BT 5.0 | GPS/GLONASS/BDS | 6000mAh (optional 8000mAh) | Type-C PD charging | Metal+plastic body | OEM/ODM customization available

Category:
Inquiry Form

Please share your customization requirements.

πŸ“± MTK6769 octa-core | 6GB RAM | 128GB storage | Android 14 | 10.95″ 2K Incell display | 4G LTE | Ideal for business, education, and entertainment

πŸ“‹ Product Overview

The GZT-MTK6769 is a premium 10.95-inch tablet powered by the MediaTek MTK6769 octa-core processor (2x Cortex-A75 2.0GHz + 6x Cortex-A55 2.0GHz) with Mali-G57 GPU. Featuring a stunning 1200×1920 Incell display, 6GB RAM, and 128GB storage, this tablet delivers exceptional performance for multimedia, productivity, and professional applications. With 4G LTE global band support, dual-band WiFi, and optional 8000mAh battery, it’s perfect for on-the-go connectivity and all-day use. Running Android 14 with GMS certification, the GZT-MTK6769 is fully customizable for OEM/ODM projects across various industries.

πŸ› οΈ Key Features

βœ“Powerful Processor: MediaTek MTK6769 octa-core (2x Cortex-A75 2.0GHz + 6x Cortex-A55 2.0GHz) for smooth multitasking.
βœ“Advanced GPU: Mali-G57 MC1 750MHz for enhanced graphics performance.
βœ“Ample Memory: 6GB LPDDR4X RAM + 128GB eMMC storage (expandable via TF card).
βœ“Stunning Display: 10.95″ Incell IPS, 1200×1920 resolution, vibrant colors and wide viewing angles.
βœ“Camera System: 13MP auto-focus rear camera + 5MP fixed focus front camera.
βœ“4G LTE Connectivity: Global band support for worldwide connectivity (5-mode).
βœ“Long Battery Life: 6000mAh standard (optional 8000mAh pure cobalt for 7-8 hours use).
βœ“Modern OS: Android 14 with GMS certification, fully customizable for your brand.
βœ“Sleek Design: Metal + plastic hybrid body, ultra-slim 7.5mm profile.

πŸ”§ System Configuration

CPU
MediaTek MTK6769 octa-core (2x Cortex-A75 2.0GHz + 6x Cortex-A55 2.0GHz)
GPU
Mali-G57 MC1 750MHz
Main Chipset
MediaTek MTK6769 (12nm)
RAM
6GB LPDDR4X
Flash Storage
128GB eMMC 5.1 (TF card expandable up to 1TB)
Operating System
Android 14 (GMS certified) – customizable boot logo/OS
Kernel Version
Linux 5.4 (vendor optimized)
Note: Android version and kernel are subject to firmware updates. Contact our engineers for the latest customization options.

πŸŽ₯ Display & Cameras

LCD Panel
10.95″ Incell IPS, 1200×1920 (~206 PPI), 16.7M colors
Touch
Incell 10-point multi-touch, optional capacitive pen support
Front Camera
5MP fixed focus
Rear Camera
13MP auto-focus with LED flash
Video Playback
1080p@60fps H.264/VP9, 4K decode support
Audio
4 x 8Ξ©/1W speakers (dual-box), built-in microphone, 3.5mm headphone jack

⚑ Battery & Power

Battery (Standard)
6000mAh / 3.8V Li-Polymer, 5+ hours mixed use
Battery (Optional)
8000mAh pure cobalt, 7-8 hours heavy use
Charging
Type-C 5V/2A (supports PD 9V/2A with optional charger)
Power Consumption
Standby: ~15mA, typical use: 800-1200mA

πŸ“‘ Connectivity & Interfaces

4G LTE
5-mode global bands: GSM (B2/B3/B5/B8), WCDMA (B1/B2/B5/B8), TD-SCDMA (B34/B39), LTE-TDD (B38/B39/B40/B41), LTE-FDD (B1/B2/B3/B4/B5/B7/B8/B12/B17/B20/B25/B26/B28/B66)
WiFi
802.11 a/b/g/n/ac (2.4G/5G dual-band)
Bluetooth
Bluetooth 5.0
GNSS
GPS / GLONASS / BDS (BeiDou)
SIM / TF
Hybrid slot: 2x Nano-SIM or Nano-SIM + microSD (up to 1TB)
USB Type-C
USB 2.0 OTG + charging (5V/2A, PD 9V/2A optional)
Audio
3.5mm headphone jack (CTIA)
Docking
Optional keyboard connector (pogo-pin)
Sensors
G-sensor, light sensor (optional), Hall effect (optional), vibration motor

πŸ“ Physical Specifications

Dimensions
256.8 x 168.3 x 7.5 mm
Weight
Approximately 520g
Material
Metal + plastic hybrid (thermally bonded)

🌑️ Environmental Requirements

Operating Temperature
0Β°C to 45Β°C
Storage Temperature
-10Β°C to 60Β°C
Operating Humidity
10% to 90% (non-condensing)
Storage Humidity
5% to 90% (non-condensing)

πŸ“¦ Package Contents

1 x Tablet
GZT-MTK6769 tablet
1 x Adapter
5V/2A charger (PD 9V/2A optional)
1 x USB Cable
USB-A to Type-C cable
1 x Manual
User manual
1 x Warranty Card
Warranty card

⚠️ OEM/ODM Important Notes

Certification: This device is not end-product certified. Whole-device testing (FCC/CE/ROHS) is customer’s responsibility. We provide full technical support for certification.

USB & Peripheral Power:

  • Type-C port supports OTG with 5V/500mA output.
  • High-power USB devices may require external power.
  • Optional PD charger supports 9V/2A fast charging.
ESD & Handling: This device contains ESD-sensitive components. Use proper anti-static procedures during handling and integration.
Battery Safety: 8000mAh pure cobalt cell requires dedicated charger profile – we provide charging parameters upon request. Do not exceed specified charge voltage.

Customization Services:

  • Boot logo, OS optimization, and driver customization available.
  • Google GMS pre-certification and private labeling.
  • Flexible MOQ – from 10 units to mass production.

Engineer-to-Engineer Support:

  • Direct access to R&D team during prototyping and production.
  • 4-6 weeks for first article samples from spec sign-off.
  • Ongoing firmware updates and technical support throughout product lifecycle.

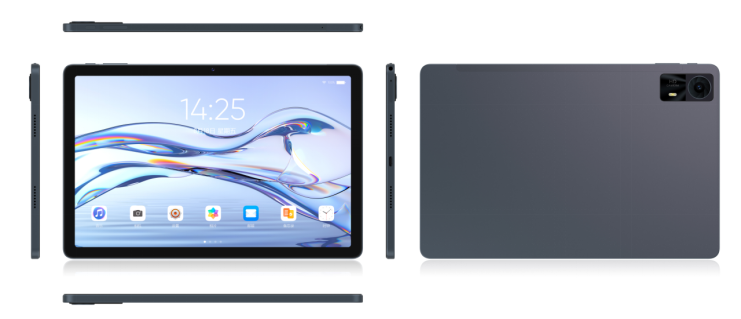

πŸ“ Mechanical Dimensions

Unit: mm

GZT-MTK6769 dimensions

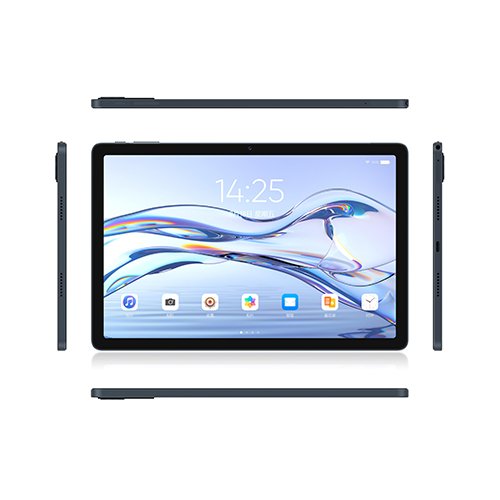

πŸ–Ό Product Images

🏭 Guangzhou GZTablet Technology Co., Ltd. β€” Your OEM/ODM partner since 2014. From prototype to volume, we deliver your brand.
