📱 GZT-Y106 12.2″ 2K Tablet
📱 MT6789 octa-core (6nm) | 8GB RAM | 256GB storage | Android 14 | 12.2″ 1600×2400 Incell display | 10000mAh battery | Premium multimedia tablet
📋 Product Overview
The GZT-Y106 is a flagship 12.2-inch tablet powered by the MediaTek MT6789 octa-core processor built on advanced 6nm process technology (2x Cortex-A76 2.2GHz + 6x Cortex-A55 2.0GHz) with Mali-G57 MC2 GPU. Featuring a stunning 1600×2400 Incell display, up to 8GB RAM and 256GB storage, this tablet delivers exceptional performance for multimedia, productivity, and creative applications. With 4G LTE global band support, dual-band WiFi, and a massive 10000mAh battery with PD fast charging, it’s perfect for all-day use. Running Android 14 with GMS certification, the GZT-Y106 is fully customizable for OEM/ODM projects across various industries.
🛠️ Key Features
✓Advanced 6nm Processor: MediaTek MT6789 octa-core (2x Cortex-A76 2.2GHz + 6x Cortex-A55 2.0GHz) for exceptional performance and power efficiency.
✓Powerful GPU: Mali-G57 MC2 for stunning graphics and smooth gaming.
✓Ample Memory: 6GB/8GB RAM options + 128GB/256GB storage (expandable up to 512GB via TF card).
✓Stunning Display: 12.2″ Incell IPS, 1600×2400 resolution for crisp visuals.
✓Advanced Video: H.265 2560×1440@60fps encoding/decoding support.
✓Camera System: 13MP auto-focus rear camera with flash + 5MP front camera.
✓4G LTE Connectivity: Global band support with up to 300Mbps download speed.
✓Massive Battery: 10000mAh battery with PD fast charging (5V/2A, 9V/2A).
✓Modern OS: Android 14 with GMS certification, fully customizable for your brand.
✓Complete Sensors: G-sensor, light sensor, compass, Hall sensor, gyroscope.
✓Premium Audio: 4 x BOX speakers, dual microphones.
🔧 System Configuration
CPU
MediaTek MT6789 octa-core (2x Cortex-A76 2.2GHz + 6x Cortex-A55 2.0GHz)
Process Technology
6nm
GPU
Mali-G57 MC2
Video Encode
H.265 2560×1440@60fps encoder
Video Decode
H.265 2560×1440@60fps decoder
RAM
6GB / 8GB LPDDR4X
Flash Storage
128GB / 256GB eMMC (expandable up to 512GB via TF card)
Operating System
Android 14 (GMS certified) – customizable boot logo/OS
Language Support
Support Multiple Languages
Note: Android version and kernel are subject to firmware updates. Contact our engineers for the latest customization options.
🎥 Display & Cameras
Display Type
Incell IPS
Display Size
12.2-inch
Resolution
1600 x 2400 pixels
Touch
10-point multi-touch
Rear Camera
13MP auto-focus with LED flash
Front Camera
5MP fixed focus
Video Features
FM Radio, Video Player, Image Viewer, Ebook support
⚡ Battery & Power
Battery Capacity
10000mAh Li-Polymer
Nominal Voltage
3.8V
Charge Limit Voltage
4.35V
Charging
Type-C, 5V/2A, 9V/2A PD fast charging
Fast Charging
Yes, supports PD protocol
📡 Connectivity & Interfaces
Network Types
GSM / WCDMA / TD-SCDMA / FDD-LTE / TDD-LTE
2G Bands
B2/B3/B5/B8
3G Bands
B1/B2/B5/B8
4G Bands
FDD: B1/B2/B3/B4/B5/B7/B8/B17/B20/B28AB, TDD: B38/B39/B40/B41
Max Download Speed
300Mbps
Max Upload Speed
150Mbps
WiFi
802.11 a/b/g/n/ac (2.4G/5G dual-band)
Bluetooth
Bluetooth 5.0
GNSS
GPS / GLONASS / A-GPS
SIM / TF
Hybrid slot: 2x Nano-SIM or Nano-SIM + TF card
External Storage
Up to 512GB
🔌 I/O Interfaces
USB Type
Type-C
USB Version
USB 2.0
OTG
Supported
Earphone
Type-C audio
Docking
Supported
Microphone
Dual microphones
Speaker
4 x BOX speakers
🎮 Sensors & Buttons
Proximity/Light Sensor
Yes
G-Sensor
Yes
Compass
Yes
Hall Sensor
Yes
Gyro Sensor
Yes
Power Button
Yes
Volume Keys
Yes
Reset Key
Supported
📏 Physical Specifications
Dimensions
279.5 x 193.1 x 7.8 mm
Weight
TBD (approximately 650g)
🌡️ Environmental Requirements
Operating Temperature
0°C to 45°C
Storage Temperature
-20°C to 60°C
Operating Humidity
10% to 90% (non-condensing)
Storage Humidity
5% to 90% (non-condensing)
📦 Package Contents
1 x Tablet
GZT-Y106 tablet
1 x Adapter
5V/2A, 9V/2A PD charger
1 x USB Cable
USB-A to Type-C cable
1 x Manual
User manual
1 x Warranty Card
Warranty card
⚠️ OEM/ODM Important Notes
Certification: This device is not end-product certified. Whole-device testing (FCC/CE/ROHS) is customer’s responsibility. We provide full technical support for certification.
USB & Peripheral Power:
- Type-C port supports OTG with 5V/500mA output.
- PD fast charging supports 5V/2A and 9V/2A for faster charging.
- High-power USB devices may require external power.
ESD & Handling: This device contains ESD-sensitive components. Use proper anti-static procedures during handling and integration.
Battery Safety: Use only the provided PD charger for optimal charging. Do not expose to high temperatures or attempt to disassemble the battery.
Customization Services:
- Boot logo, OS optimization, and driver customization available.
- Google GMS pre-certification and private labeling.
- Flexible MOQ – from 10 units to mass production.
- RAM/Storage configuration options available.
Engineer-to-Engineer Support:
- Direct access to R&D team during prototyping and production.
- 4-6 weeks for first article samples from spec sign-off.
- Ongoing firmware updates and technical support throughout product lifecycle.

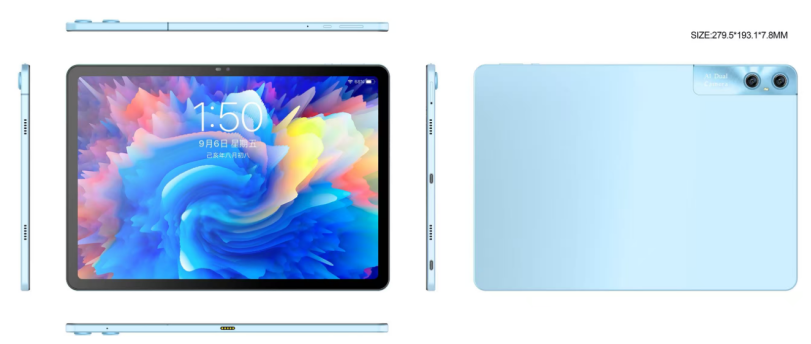

📐 Mechanical Dimensions
Unit: mm

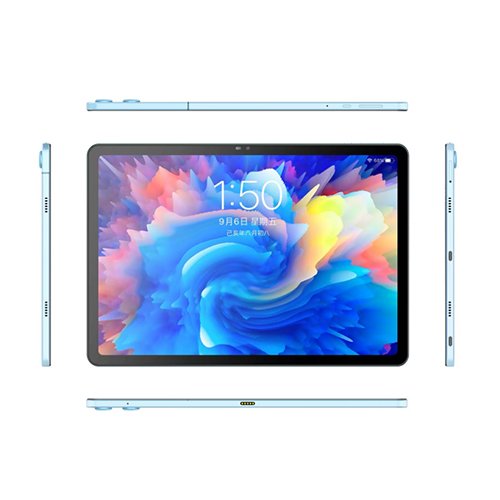

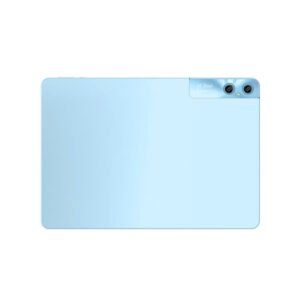

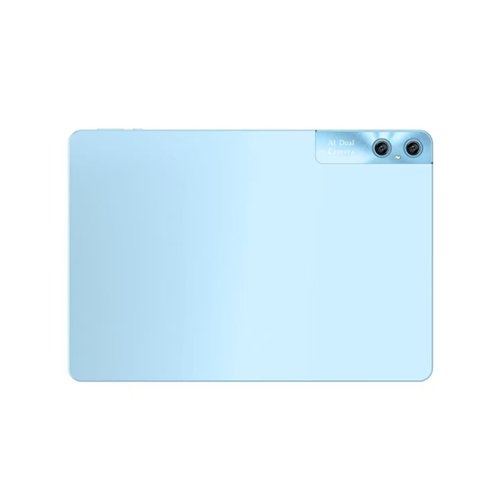

🖼 Product Images
🏭 Guangzhou GZTablet Technology Co., Ltd. — Your OEM/ODM partner since 2014. From prototype to volume, we deliver your brand.
